Stainless Steel 316H Pipes are top-notch piping solutions crafted for situations that demand outstanding corrosion resistance, high-temperature strength, and long-lasting durability. As a high-carbon variant of 316 stainless steel, these pipes excel in creep resistance and strength when the heat is on, making them perfect for power plants, chemical processing, and the petrochemical sector. They come in a variety of diameters, wall thicknesses, and lengths, offering the flexibility needed for diverse piping system designs and industrial uses.
These pipes are made up of iron, chromium, nickel, and molybdenum, featuring a higher carbon content than the standard 316. The chromium boosts resistance to corrosion and oxidation, while nickel enhances toughness and ductility. Molybdenum steps in to provide excellent protection against pitting, crevice corrosion, and chloride attack, especially in tough chemical and marine settings. Thanks to the high carbon content, these pipes boast remarkable strength and stability at elevated temperatures, all while resisting stress corrosion cracking and mechanical wear.
| Specifications | ASME SA213/ ASTM A/A249/A312/A269/A358 CL. I to V |
| EFW 316H Pipes & Tubes | 6″ NB – 100″ NB |
| 316H Pipes & Tubes | 1/2″ NB – 16″ NB |
| Schedule | SCH20, SCH40, SCH30, STD, XS, SCH80, SCH60, SCH120, SCH80, SCH160, SCH140, XXS |
| Type | ERW / Seamless / Fabricated / Welded / LSAW Pipes |
| Dimensions | ASME, ASTM and API |
| Size | 1/8″NB TO 30″NB IN |
| ERW 316H Pipes & Tubes | 1/2″ NB – 24″ NB |
| Specialized in | Large Diameter Size |
| Length | Double, Single Random & Cut Length. |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| End | Plain, Beveled, Treaded End |
| Grades | Mn | C | Si | S | P | Cr | Ni | Mo | N | |
| 316H | Minimum | 0.04 | 0.04 | 0 | – | – | 16.0 | 10.0 | 2.00 | – |
| Maximum | 0.10 | 0.10 | 0.75 | 0.03 | 0.045 | 18.0 | 14.0 | 3.00 | – |
| Grade | Tensile Strength (MPa) minimum | Elongation (% in 50mm) minimum | Yield Strength 0.2% Proof (MPa) minimum | Hardness | |
| Rockwell B (HR B) maximum | Brinell (HB) maximum | ||||
| 316H | 515 | 40% | 205 | 95 | 217 |
Contact us to get a quick quote for your requirement.
We provides comprehensive testing and certification for Stainless Steel 316H pipes so that the product is of high standard. All our pipes undergo mechanical and chemical analysis, pressure testing, and dimensional inspection. All our products are certified so that all items from here match ASTM, ASME, and more industry standards, ensuring full reliability and performance on demanding applications.

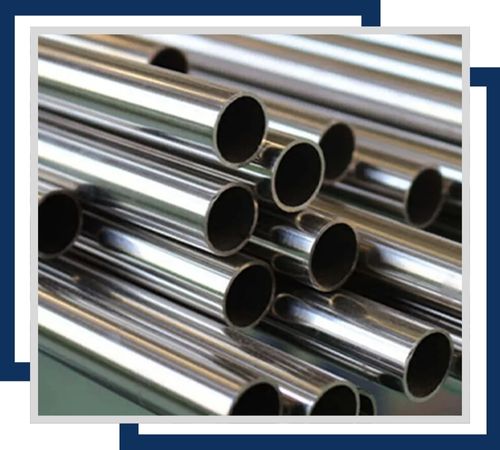

Stainless Steel 316H pipes offer superior corrosion resistance and high-temperature strength. Ideal for demanding industrial applications, these pipes provide durability and reliability in harsh environments.

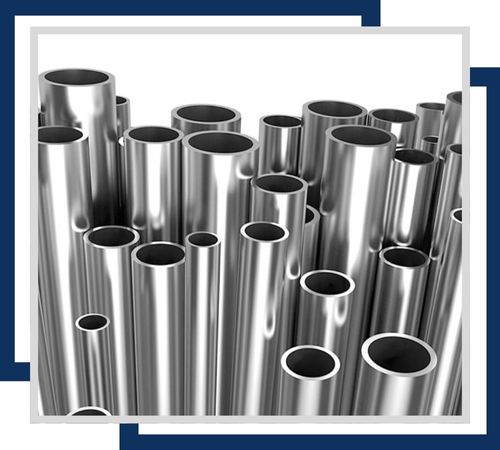

SS 316H seamless pipes deliver exceptional corrosion resistance and high-temperature performance. Perfect for industrial applications requiring strength and durability, these pipes ensure reliable operation in challenging environments.

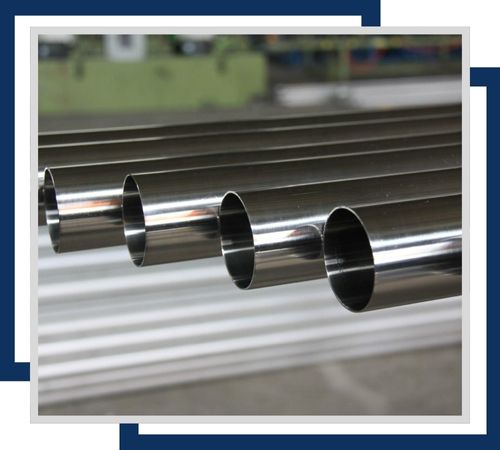

SS 316H ERW pipes offer excellent corrosion resistance and strength. Ideal for high-pressure and high-temperature applications, they provide durability and reliability in various industrial environments.

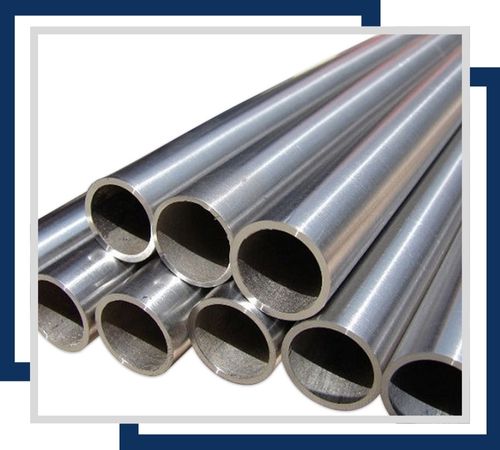

AISI 316H pipes provide outstanding corrosion resistance and high-temperature stability. Perfect for demanding industrial applications, these pipes deliver strength and reliability in harsh environments and extreme conditions.

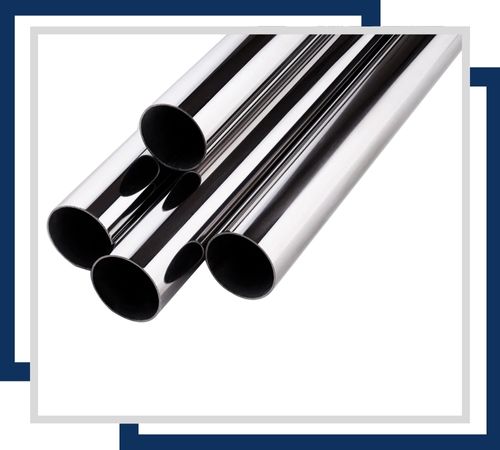

Stainless Steel 316H round pipes offer superior corrosion resistance and strength. Ideal for high-temperature and high-pressure applications, they ensure durability and performance in various industrial and structural settings.

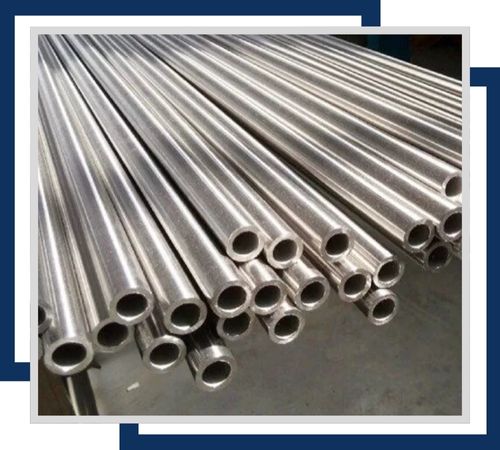

SS 316H EFW pipes combine excellent corrosion resistance with high strength. Ideal for demanding applications, they offer reliable performance and durability in extreme temperatures and challenging environments.
Stainless Steel 316H Pipes find their place in chemical plants, petrochemical refineries, power generation, marine engineering, and high-temperature industrial processes. They’re perfect for transporting corrosive fluids, high-temperature steam, and aggressive chemicals. Plus, their impressive mechanical properties and corrosion resistance make them a great fit for critical structural and process piping systems. With a blend of high-temperature strength, durability, and corrosion resistance, Stainless Steel 316H Pipes deliver dependable and long-lasting performance in even the most demanding industrial environments.
