Home > Sheet and Plates > SS 418 Sheet and Plates
Stainless Steel 418 Sheets and Plates are top-notch materials crafted for situations that demand exceptional strength, corrosion resistance, and durability. Being a martensitic stainless steel grade, SS 418 boasts impressive hardness and wear resistance, making it perfect for tough industrial and structural applications. You can find these sheets and plates in a variety of thicknesses, finishes, and sizes to suit different needs. Their dependable mechanical performance and ability to withstand high temperatures make them a great choice for components that face mechanical stress and challenging working conditions.
The composition of SS 418 Sheets and Plates mainly includes iron, chromium, and carbon, with carefully controlled amounts of nickel, molybdenum, and manganese to boost their mechanical and chemical characteristics. Chromium is key for resisting corrosion and oxidation, while carbon enhances hardness and tensile strength. Nickel adds to the overall toughness, and molybdenum helps improve resistance to pitting and crevice corrosion. Thanks to their robust mechanical properties, these sheets and plates deliver high tensile strength, wear resistance, and stability even at elevated temperatures.
| Specifications : | ASTM B441 / ASME SB196 |
| Dimensions : | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, IS & Custom Chemistry |
| Production Route : | Hot Rolled, Cold Rolled |
| Size : | Width from 100mm to 3000mm ; Length from 500mm to 12000mm |
| Thickness : | 0.1mm to 400mm |
| Delivery Condition : | As Rolled, Annealed, Quenched and Tempered, Normalized |
| Surface Finish : | Plain, Brushed, Cladded |
| Element | Content (%) |
| Iron, Fe | 82 |
| Chromium, Cr | 13 |
| Tungsten, W | 3 |
| Nickel, Ni | 2 |
| Properties | Metric | Imperial |
| Tensile strength | 895 MPa | 130000 psi |
| Yield strength (@strain 0.200 %) | 725 MPa | 105000 psi |
| Modulus of elasticity | 190-210 GPa | 27557- 30457 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 15% | 15% |
| Hardness, Rockwell C | 25 | 25 |
| Density(lb/ft3) | Electrical conductivity(% IACS) | Thermal conductivity(BTU/h-ft-°F) | Specific heat capacity(BTU/lb-°F) | Thermal expansion(µm/m-K) |
| 500 | 2.8% | 15 | 470 | 10 |
Contact us to get a quick quote for your requirement.

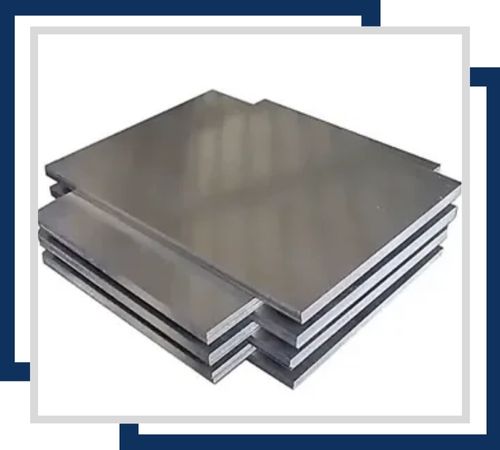

SS 418 Cold Rolled Sheets are stainless steel sheets of excellent strength, durability, and smooth surface finish. Sheets are available in different sizes and usually vary between 0.3mm and 6mm in thickness with widths and lengths according to individual industrial requirements.

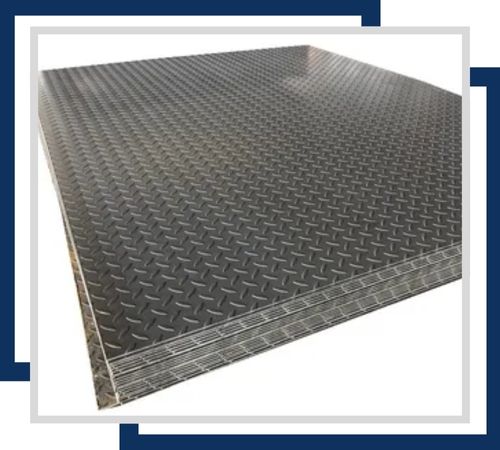

SS 418 Chequered Plates are high-quality stainless steel plates with a textured, non-slip surface, ideal for heavy-duty applications requiring durability and traction. The plates are available in sizes from 1mm to 10mm in thickness, with standard lengths and widths.

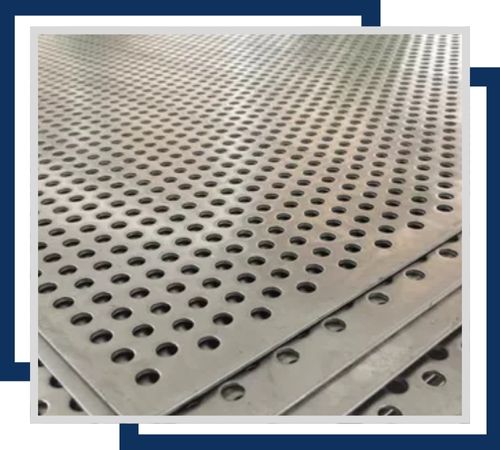

SS 418 perforated plates are of top quality stainless steel sheets which have precise perforations and have industrial applications. It is also available in standard sizes in a thickness of 0.5 mm to 6 mm and hole diameter ranges from 1 mm to 25 mm for great strength and flexibility.

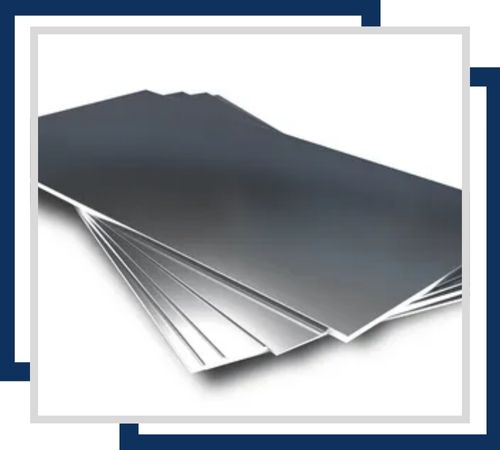

SS 418 shim sheets are precision-engineered stainless steel sheets. They have used gap-filling, alignment, and leveling applications. These are available in sizes varying from 0.05mm to 5mm in thickness and even customized with respect to length and width. They offer excellent corrosion resistance and durability for industrial use.

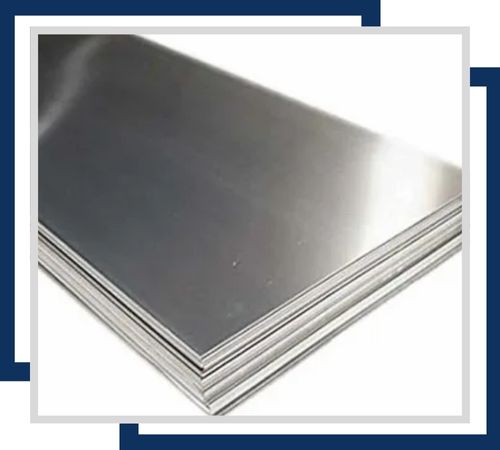

SS 418 Polished Plate is a finished stainless steel product with excellent resistance to corrosion in the form of a polished product. Plates made from this steel are available in different sizes-from 4′ x 8′ standard commercial sizes to highly customized dimensions designed for multiple industries and architectural features.
Amer Stainless is dedicated to providing an outstanding customer experience with full documentation on our high-quality Stainless Steel 418 Sheets and Plates. We provide crucial documents such as the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test reports. These documents authenticate the superior quality of our products, which instills confidence in our customers. Additionally, we provide test certificates, including MTC per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate, which speaks for our customer-first approach and never-ending pursuit of excellence.
You’ll find SS 418 Sheets and Plates being utilized in various industries, including aerospace, automotive, petrochemical, and general engineering. They’re perfect for crafting shafts, valves, turbine components, gears, and parts of high-stress machinery that require outstanding strength and durability. Their corrosion resistance makes them a solid choice for marine and offshore applications, while their toughness and wear resistance ensure they last in abrasive or high-load environments. The blend of strength, durability, and corrosion resistance makes SS 418 Sheets and Plates a reliable material for critical industrial uses.
