Home > Sheet and Plates > Stainless Steel 317 Sheet and Plates
Amer Stainless, based in Amman, Jordan, stands out as a top-notch manufacturer and supplier of high-quality Stainless Steel 317 Sheets and Plates. They cater to industries that require outstanding corrosion resistance and structural reliability. Renowned for their precision engineering and advanced manufacturing techniques, Amer Stainless maintains strict quality control to ensure their products meet international standards. Their sheets and plates are crafted for long-lasting performance in harsh environments, making them perfect for chemical, petrochemical, marine, and industrial uses. With a strong focus on durability, consistency, and customer satisfaction, Amer Stainless has become a trusted partner for essential stainless steel solutions.
Stainless Steel 317 Sheets and Plates are made from an austenitic alloy that boasts high levels of chromium, nickel, and molybdenum—typically around 18% chromium, 13% nickel, and 3–4% molybdenum. The low carbon content not only enhances weldability but also prevents carbide precipitation. On the mechanical side, 317 delivers impressive tensile and yield strength, along with excellent ductility and toughness. This alloy is particularly resistant to pitting, crevice, and stress corrosion cracking, especially in environments rich in chlorides or acids. Its unique blend of strength, corrosion resistance, and thermal stability makes it a reliable choice for demanding industrial applications.
Specifications: ASTM A240 / ASME SA240
Dimensions: ASTM, ASME, and API.
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness:4mm-100mm
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Form: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
|
SS 317 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 – 20.00 |
3.00 – 4.00 |
11.00 – 15.00 |
57.845 min |
|
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
7.9 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000, MPa – 515 |
Psi – 30000, MPa – 205 |
35 % |
Contact us to get a quick quote for your requirement.

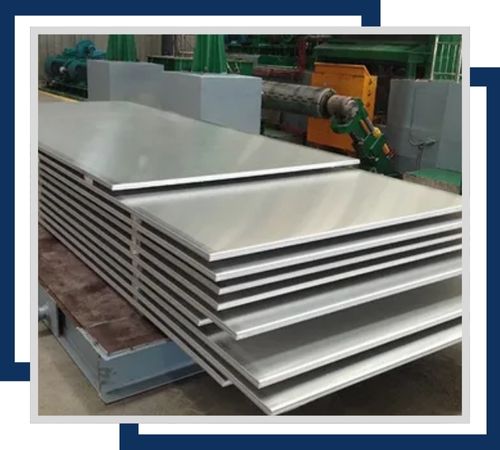

Stainless Steel 317 Hot Rolled Sheet and Plates provide excellent strength along with excellent corrosion resistance for high-temperature and aggressive chemical environments. They are used in industrial applications requiring durability and toughness.

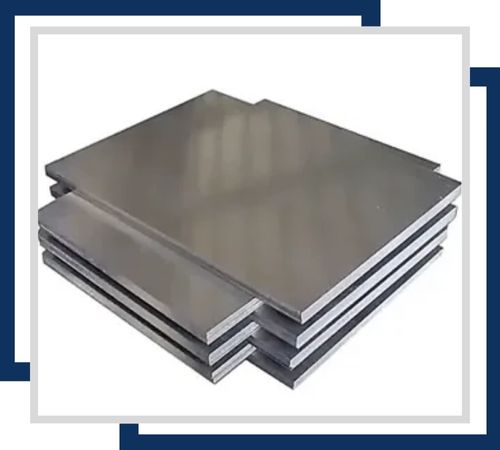

Stainless Steel 317 Cold Rolled Sheet and Plates provide a smooth surface finish and precise dimensions, suitable for any applications in chemical, marine, pharmaceutical industries with high requirements of superior corrosion resistance and aesthetic quality.

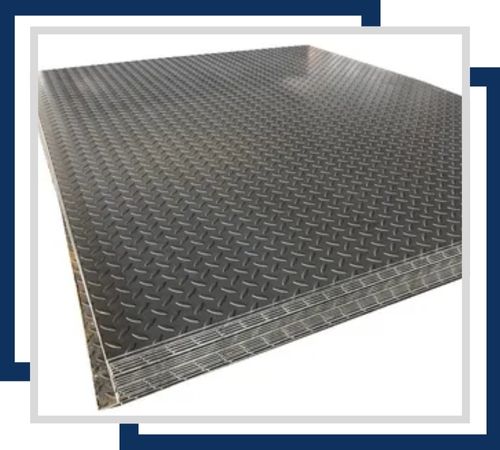

Stainless Steel 317 Chequered Sheet and Plates are used in slip-resistant and long-lasting applications like flooring and stair treads. They are excellent corrosion-resistant materials, which can be used for both industrial and decorative purposes.

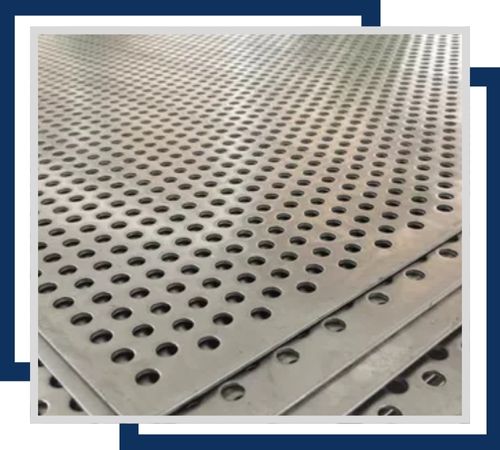

Stainless Steel 317 Perforated Sheet and Plates are used for filtration, ventilation, and architecture. It incorporates strength with the corrosion resistance capabilities of the plates along with useful perforations; hence, ideal for custom design and structural purposes in aggressive applications.

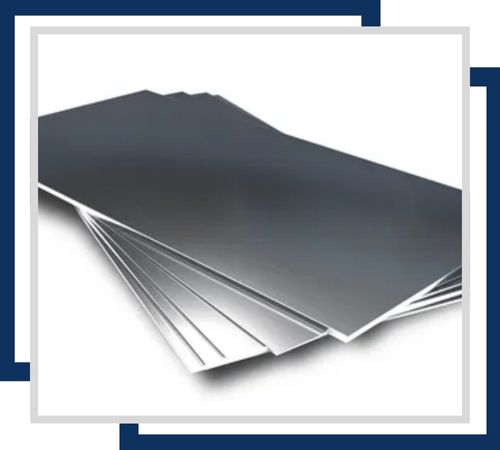

Stainless Steel 317 Shim Sheet and Plates are deployed for precision spacing and alignment within machinery and equipment. It shows high strength as well as resistant to corrosion features, thus sustaining stability and endurance in critical operations.

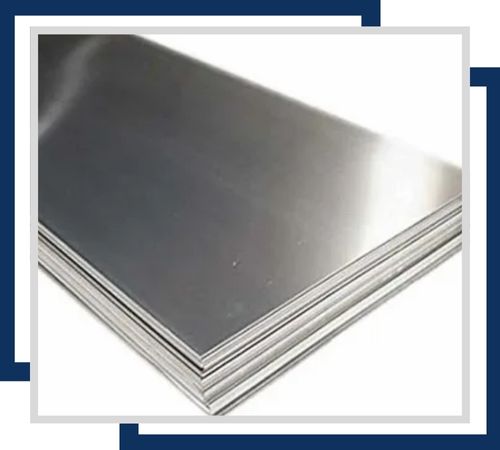

Stainless Steel 317 Polished Sheet and Plates have a very high-quality, reflective finish which is suitable for decorative and architectural applications. These have excellent corrosion resistance and are used in the environments where the appearance and durability are key requirements.
Stainless Steel 317 Sheets and Plates find extensive use in industries that prioritize high corrosion resistance and structural integrity. They’re perfect for chemical and petrochemical plants, serving in storage tanks, process vessels, heat exchangers, and piping systems that come into contact with aggressive chemicals. The marine industry also counts on 317 sheets and plates for components exposed to seawater, thanks to their resistance to pitting and crevice corrosion. Additionally, the food, pharmaceutical, and beverage sectors utilize these materials for their durability and reliability in various applications.
